IFM55TH652/4

Funcionalidades

Escrita suave simultânea Multi-Touch

O suporte de toque de 10 pontos deteta vários pontos de toque, aumentando a possibilidade de trabalho colaborativo. As telas também proporcionar uma experiência de escrita precisa e fácil de utilizar com o seu superfície lisa.

HDR10 & 4K HDMI @60Hz

Displays supporting HDR10 allows HDR based content to be shown, giving a brighter and more dynamic picture. This is further enhanced due to the support of 4K 60Hz, allowing ultra sharp, smooth Video content to be presented.

Vidro temperado anti-reflexo

Evita o reflexo da luz e proporciona um toque suave desempenho com tecnologia anti-reflexo. Design robusto com material de vidro temperado para evitar qualquer dano na tela

Colabore, anote com Oktopus

Colabore: visualize aulas, responda, partilhe apontamentos e tome notas utilizando qualquer tablet ou portátil Antate: funciona no conteúdo do browser e em aplicações existentes Sondagem: coloque questões e obtenha feedback imediato dos participantes, exibindo os resultados instantaneamente.

Mostrar

Screen Size 55"

Panel Technology IPS

Backlight Type Direct-Type LED

Brightness (typical) 400 cd/m²

Native Resolution UHD: 3840 x 2160 - HDR10

Contrast Ratio (typical) 1300:1

Dynamic Contrast Ratio 40000:1

Panel Life Time ( Min. ) 30000 Hr

Response Time (typical) 6 ms

Active Area (H x V) 1210 x 681 mm

Viewing Angle 178° Vert., 178° Hor. (89U/89D/89L/89R) @ CR>10

Color Value 16.7 M (8-bit)

Screen Treatment 2H

Haze Level 8%

Refresh Rate 60 Hz

Front Type Black Super Narrow Bezel

Orientation Horizontal

Operation Hours 16/7

Area of Usage Indoor

Sistema integrado

Mainboard Model 17MB135VS

E/S traseiras

RGB Input VGA(DE-15F)

RGB Output N/A

Video Input 4xHDMI2.0, 2xUSB2.0, USB2.0(Internal)

Video Output HDMI2.0

Audio Input Line In L/R

Audio Output Headphone, Optic SPDIF

External Control RS232(DE-9F), Ethernet(RJ45), Service(RJ12)

External Sensor RJ12

Interatividade por toque

Type of Touch Technology Infrared (IR) Technology

Continuous Touch Points 10 Points

Sensitivity Any touch with finger, gloved hand or pointer

Connectivity HID, TUIO, Flash

Compatibility Windows®7, Windows®8, Windows®10, Vista, XP, Mac® OS, Linux, Android

Orientation Landscape support

Calibration No need

Accuracy %90 <

Reporting Rate Up to 450 fps

Glass Type Anti Glared (AG), 4mm Tempered

Frame Rate up to 450 fps

Communication USB 2.0

Power Supply Mode USB

Supply Voltage DC 5V +/- 5%

Average Current <400mA

Response Time <10ms

Touch Accuracy +/-2mm (over 90% area)

Touch Durability Unlimited

HID Compatibility Yes USB

Object Sizes for Touch 5mm

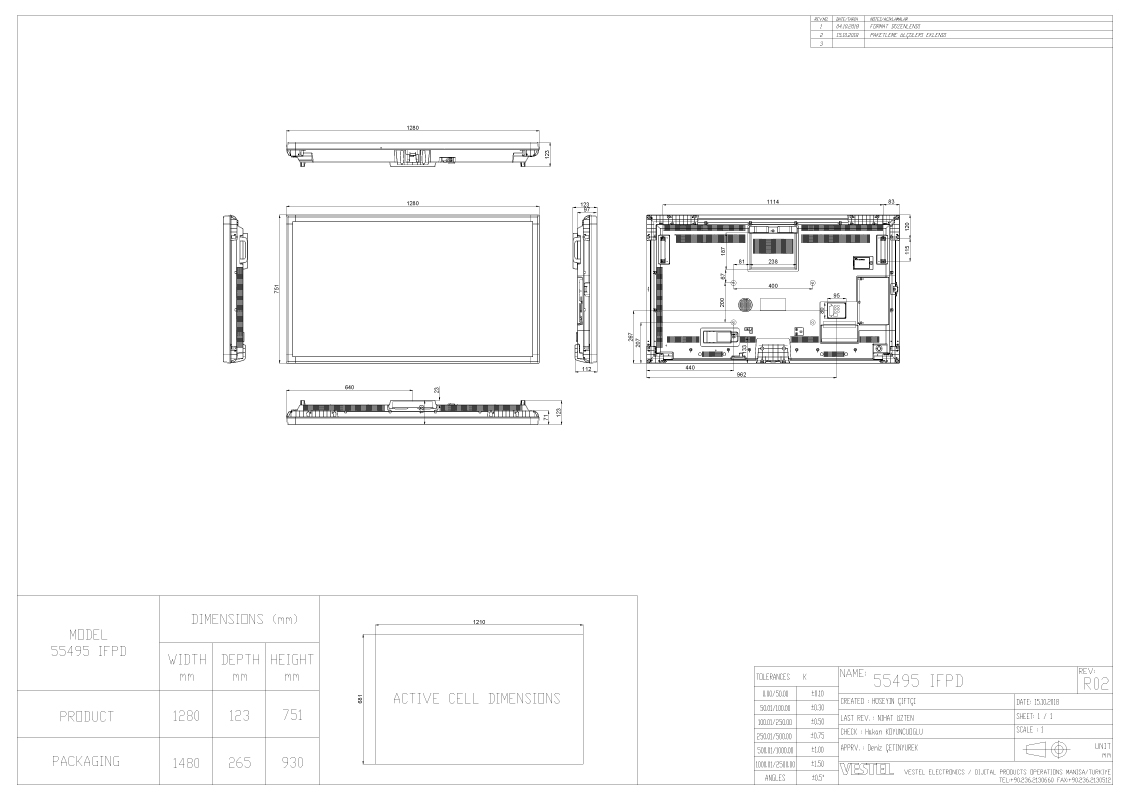

Mechanical

Product Dimensions (WxDxH) 1280 x 123 x 751 mm

Package Dimensions (WxDxH) 1480 x 265 x 930 mm

Product Weight 29.45 kg

Package Weight 38.15 kg

Vesa Mounting 400 x 200 mm

Bezel Width B:34 | T:34 | L/R:34 mm

Condições ambientais

Operating Temperature +40°C / 0°C

Operating Humidity 90%

Poder

Power Supply 110 VAC - 240 VAC

Consumo de energia

Typical 138 W

Maximum 180 W

Deep Standby ≤0.5W

Features

Main Features USB-Autoplay, Auto-switch on Failover, Control Button Lock, HDMI Wake-Up

Mechanical Features IR Touch, Joystick, IR Extender Support, Rocker Switch, Detachable power cable, Carrying handles, Detachable logo positioning, Cable Holders

Optional Features OPS Compliance

Speaker 2 x 8 W

Acessório

Standard QSG, IB, Power Cord, Remote Control, RC Battery, Mounting Kit, Extension Brackets, IR Extender Cable

Certificação

Safety YES

EMC YES

CE YES

Reability Approval YES

* As especificações estão sujeitas a alterações sem aviso prévio.
