Sèrie IFM

IFM55TH652/4

Discontinued Products
  • Application Area: Education
CONSULTA PER COMPRAR
Característiques
Escriptura suau simultània Multi-touch

El suport tàctil de 10 punts detecta múltiples punts de contacte, millorar les possibilitats del treball col·laboratiu. Les pantalles també proporcionar una experiència d'escriptura precisa i fàcil d'utilitzar amb el seu superfície llisa.

HDR10 & 4K HDMI @60Hz

Displays supporting HDR10 allows HDR based content to be shown, giving a brighter and more dynamic picture. This is further enhanced due to the support of 4K 60Hz, allowing ultra sharp, smooth Video content to be presented.

Vidre temperat anti-enlluernament

Evita el reflex de la llum i proporciona un tacte suau rendiment amb tecnologia anti-enlluernament. Disseny robust amb material de vidre endurit per evitar danys a la pantalla

Col·labora, anota amb Oktopus

Col·labora: visualitza les lliçons, respon, comparteix anotacions i pren notes amb qualsevol tauleta o ordinador portàtil Anntate: funciona amb el contingut del navegador i les aplicacions existents Enquesta: feu preguntes i obteniu comentaris immediats dels participants, mostrant els resultats a l'instant.

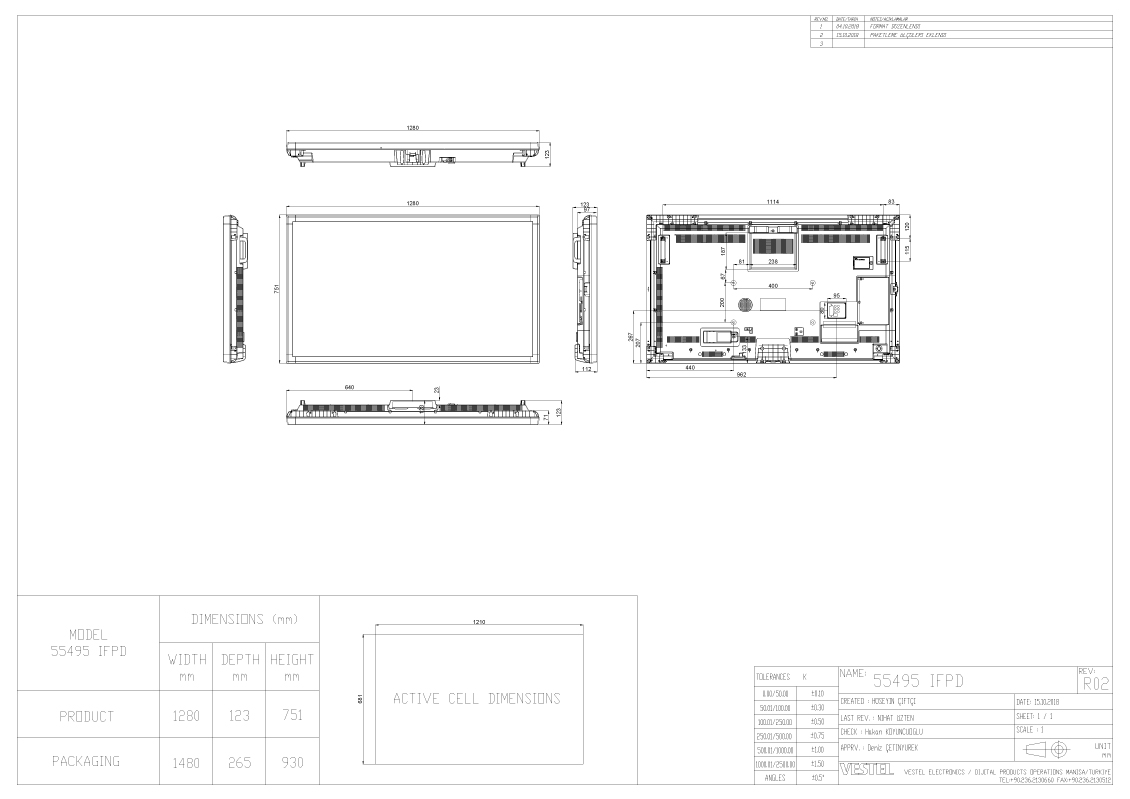

Specification Sheet Fitxa de dades comercials Dibuix mecànic detallat Dibuix mecànic detallat Dibuix de muntatge a la paret Document de control
Especificacions
Mostra
Screen Size 55"
Panel Technology IPS
Backlight Type Direct-Type LED
Brightness (typical) 400 cd/m²
Native Resolution UHD: 3840 x 2160 - HDR10
Contrast Ratio (typical) 1300:1
Dynamic Contrast Ratio 40000:1
Panel Life Time ( Min. ) 30000 Hr
Response Time (typical) 6 ms
Active Area (H x V) 1210 x 681 mm
Viewing Angle 178° Vert., 178° Hor. (89U/89D/89L/89R) @ CR>10
Color Value 16.7 M (8-bit)
Screen Treatment 2H
Haze Level 8%
Refresh Rate 60 Hz
Front Type Black Super Narrow Bezel
Orientation Horizontal
Operation Hours 16/7
Area of Usage Indoor
Sistema incorporat
Mainboard Model 17MB135VS
E/S posteriors
RGB Input VGA(DE-15F)
RGB Output N/A
Video Input 4xHDMI2.0, 2xUSB2.0, USB2.0(Internal)
Video Output HDMI2.0
Audio Input Line In L/R
Audio Output Headphone, Optic SPDIF
External Control RS232(DE-9F), Ethernet(RJ45), Service(RJ12)
External Sensor RJ12
Toqueu Interactivitat
Type of Touch Technology Infrared (IR) Technology
Continuous Touch Points 10 Points
Sensitivity Any touch with finger, gloved hand or pointer
Connectivity HID, TUIO, Flash
Compatibility Windows®7, Windows®8, Windows®10, Vista, XP, Mac® OS, Linux, Android
Orientation Landscape support
Calibration No need
Accuracy %90 <
Reporting Rate Up to 450 fps
Glass Type Anti Glared (AG), 4mm Tempered
Frame Rate up to 450 fps
Communication USB 2.0
Power Supply Mode USB
Supply Voltage DC 5V +/- 5%
Average Current <400mA
Response Time <10ms
Touch Accuracy +/-2mm (over 90% area)
Touch Durability Unlimited
HID Compatibility Yes USB
Object Sizes for Touch 5mm
Mechanical
Product Dimensions (WxDxH) 1280 x 123 x 751 mm
Package Dimensions (WxDxH) 1480 x 265 x 930 mm
Product Weight 29.45 kg
Package Weight 38.15 kg
Vesa Mounting 400 x 200 mm
Bezel Width B:34 | T:34 | L/R:34 mm
Condicions ambientals
Operating Temperature +40°C / 0°C
Operating Humidity 90%
Poder
Power Supply 110 VAC - 240 VAC
Consum energètic
Typical 138 W
Maximum 180 W
Deep Standby ≤0.5W
Features
Main Features USB-Autoplay, Auto-switch on Failover, Control Button Lock, HDMI Wake-Up
Mechanical Features IR Touch, Joystick, IR Extender Support, Rocker Switch, Detachable power cable, Carrying handles, Detachable logo positioning, Cable Holders
Optional Features OPS Compliance
Speaker 2 x 8 W
Accessoris
Standard QSG, IB, Power Cord, Remote Control, RC Battery, Mounting Kit, Extension Brackets, IR Extender Cable
Certificació
Safety YES
EMC YES
CE YES
Reability Approval YES
* Les especificacions estan subjectes a canvis sense avís previ.
