Cyfres IFM

IFM55TH652/4

Discontinued Products
  • Application Area: Education
YMCHWILIAD I BRYNU
Nodweddion
Ar y pryd Ysgrifennu llyfn Aml - Gyffwrdd

Mae cefnogaeth cyffwrdd 10 pwynt yn canfod pwyntiau cyffwrdd lluosog, gwella'r posibilrwydd o gydweithio. Mae'r sgriniau hefyd darparu profiad ysgrifennu manwl gywir a hawdd ei ddefnyddio gyda'i arwyneb llyfn.

HDR10 & 4K HDMI @60Hz

Displays supporting HDR10 allows HDR based content to be shown, giving a brighter and more dynamic picture. This is further enhanced due to the support of 4K 60Hz, allowing ultra sharp, smooth Video content to be presented.

Gwydr Tempered Anti Glare

Yn atal adlewyrchiad golau ac yn darparu cyffyrddiad llyfn perfformiad gyda thechnoleg gwrth-lacharedd. Dyluniad cadarn gyda deunydd gwydr gwydn i osgoi unrhyw ddifrod i'r sgrin

Cydweithio, anodi ag Oktopus

Cydweithio: Gweld gwersi, ymateb, rhannu anodiadau, a chymryd nodiadau gan ddefnyddio unrhyw dabled neu liniadur Antate: Yn gweithio dros gynnwys porwr a chymwysiadau presennol Pôl: Gofyn cwestiynau a chael adborth ar unwaith gan gyfranogwyr, gan ddangos canlyniadau ar unwaith.

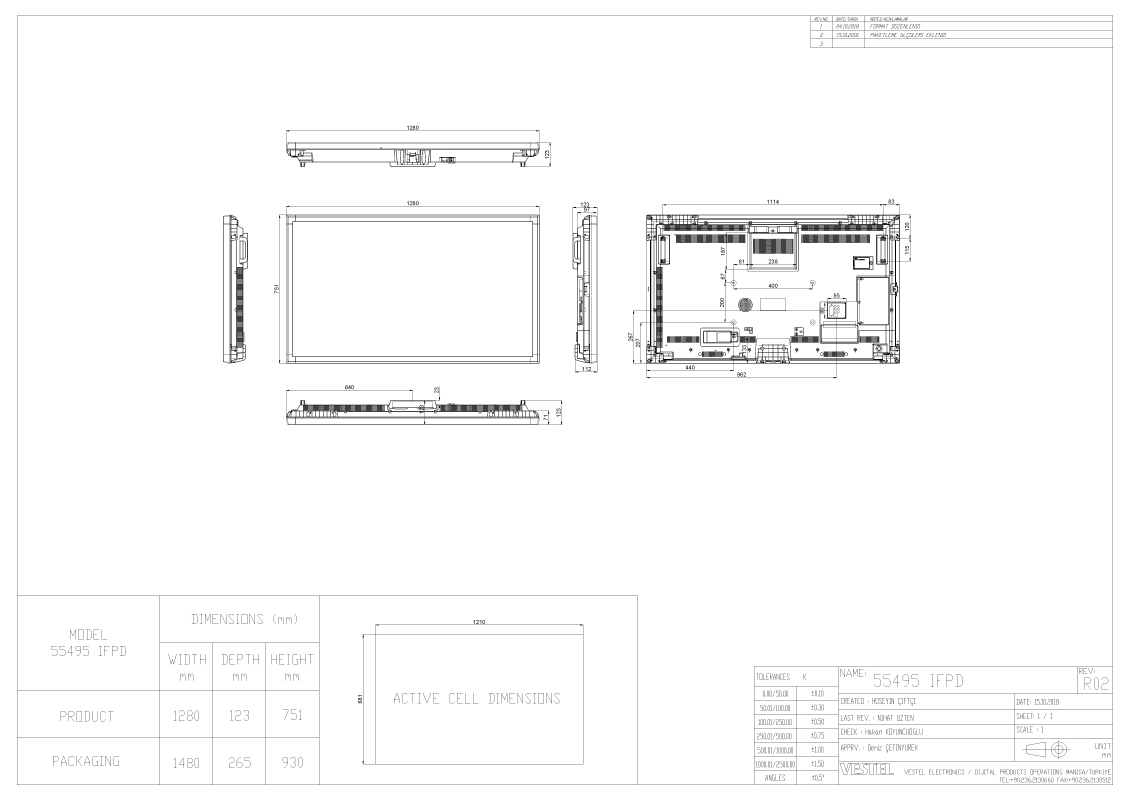

Specification Sheet Taflen Data Masnachol Darlun Mecanyddol Manwl Darlun Mecanyddol Manwl Darlun Wal Mount Dogfen Reoli
Manylebau
Arddangos
Screen Size 55"
Panel Technology IPS
Backlight Type Direct-Type LED
Brightness (typical) 400 cd/m²
Native Resolution UHD: 3840 x 2160 - HDR10
Contrast Ratio (typical) 1300:1
Dynamic Contrast Ratio 40000:1
Panel Life Time ( Min. ) 30000 Hr
Response Time (typical) 6 ms
Active Area (H x V) 1210 x 681 mm
Viewing Angle 178° Vert., 178° Hor. (89U/89D/89L/89R) @ CR>10
Color Value 16.7 M (8-bit)
Screen Treatment 2H
Haze Level 8%
Refresh Rate 60 Hz
Front Type Black Super Narrow Bezel
Orientation Horizontal
Operation Hours 16/7
Area of Usage Indoor
System Adeiledig
Mainboard Model 17MB135VS
I/Os cefn
RGB Input VGA(DE-15F)
RGB Output N/A
Video Input 4xHDMI2.0, 2xUSB2.0, USB2.0(Internal)
Video Output HDMI2.0
Audio Input Line In L/R
Audio Output Headphone, Optic SPDIF
External Control RS232(DE-9F), Ethernet(RJ45), Service(RJ12)
External Sensor RJ12
Rhyngweithedd Cyffwrdd
Type of Touch Technology Infrared (IR) Technology
Continuous Touch Points 10 Points
Sensitivity Any touch with finger, gloved hand or pointer
Connectivity HID, TUIO, Flash
Compatibility Windows®7, Windows®8, Windows®10, Vista, XP, Mac® OS, Linux, Android
Orientation Landscape support
Calibration No need
Accuracy %90 <
Reporting Rate Up to 450 fps
Glass Type Anti Glared (AG), 4mm Tempered
Frame Rate up to 450 fps
Communication USB 2.0
Power Supply Mode USB
Supply Voltage DC 5V +/- 5%
Average Current <400mA
Response Time <10ms
Touch Accuracy +/-2mm (over 90% area)
Touch Durability Unlimited
HID Compatibility Yes USB
Object Sizes for Touch 5mm
Mechanical
Product Dimensions (WxDxH) 1280 x 123 x 751 mm
Package Dimensions (WxDxH) 1480 x 265 x 930 mm
Product Weight 29.45 kg
Package Weight 38.15 kg
Vesa Mounting 400 x 200 mm
Bezel Width B:34 | T:34 | L/R:34 mm
Amodau Amgylcheddol
Operating Temperature +40°C / 0°C
Operating Humidity 90%
Grym
Power Supply 110 VAC - 240 VAC
Defnydd Pŵer
Typical 138 W
Maximum 180 W
Deep Standby ≤0.5W
Features
Main Features USB-Autoplay, Auto-switch on Failover, Control Button Lock, HDMI Wake-Up
Mechanical Features IR Touch, Joystick, IR Extender Support, Rocker Switch, Detachable power cable, Carrying handles, Detachable logo positioning, Cable Holders
Optional Features OPS Compliance
Speaker 2 x 8 W
Affeithiwr
Standard QSG, IB, Power Cord, Remote Control, RC Battery, Mounting Kit, Extension Brackets, IR Extender Cable
Ardystiad
Safety YES
EMC YES
CE YES
Reability Approval YES
* Gall manylebau newid heb rybudd ymlaen llaw.
