Panel
Screen Size
55"
Backlight Type
Edge-Type LED
Brightness (typical)
500 cd/m²
Native Resolution
UHD: 3840 x 2160 - HDR10
Contrast Ratio (typical)
1200:1
Dynamic Contrast Ratio
70000:1
Panel Life Time ( Min. )
50000 Hrs
Response Time (typical)
6 ms
Active Area (H x V)
1209,6 x 680,4 mm
Pixel Pitch (H x V)
0.630 x 0.630 mm
PPI (pixel per inch)
40
Viewing Angle
178° Vert., 178° Hor. (89U/89D/89L/89R) @ CR>10
Color Value
1.07 B (10-bit)
Screen Treatment
3H
Haze Level
1%
Refresh Rate
60 Hz
Front Type
Ultra Narrow Bezel
Orientation
Horizontal
Operation Hours
16/7
Area of Usage
Indoor
Built-in System
Mainboard Model
17MB135VS
Monitor Connectivity
RGB Input
VGA(DE-15F)
RGB Output
N/A
Video Input
4xHDMI2.0, 2xUSB2.0
Video Output
HDMI2.0
Audio Input
Line In L/R
Audio Output
Headphone, Optic SPDIF
External Control
RS232(DE-9F), Ethernet(RJ45), Service(RJ12)
External Sensor
RJ12

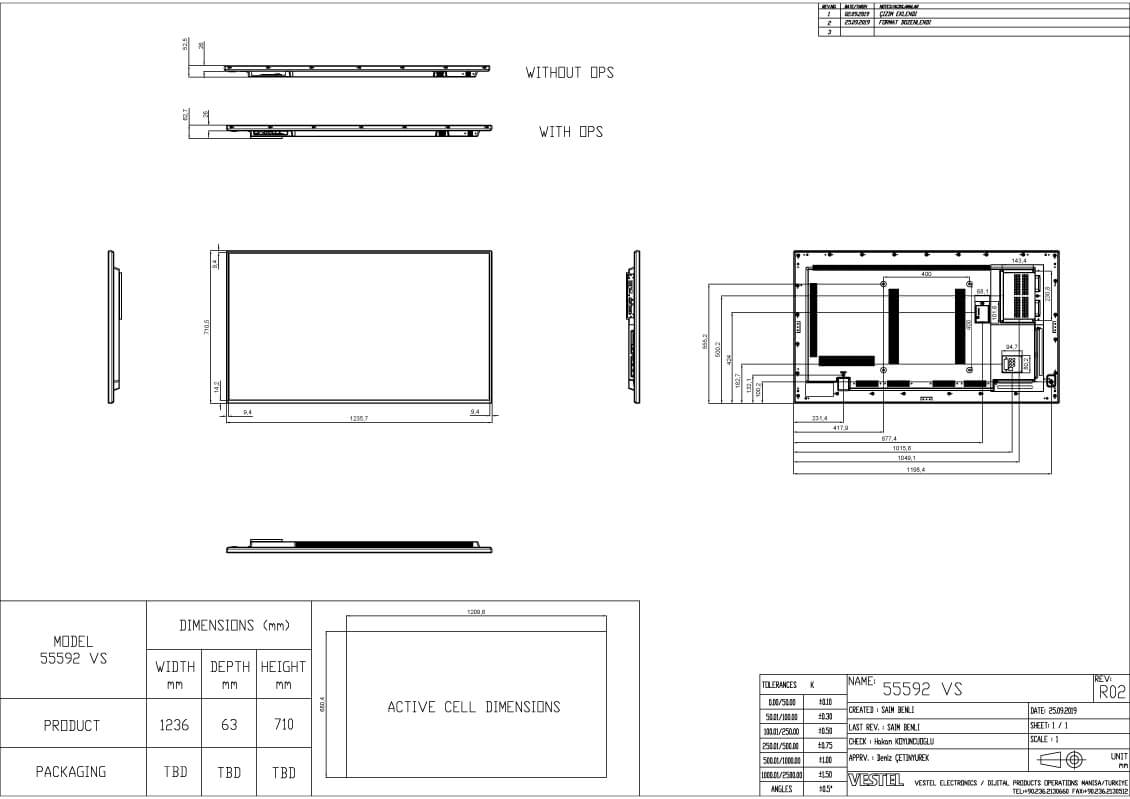

Mechanical
Product Dimensions (WxDxH)
1236 x 63 x 710 mm
Package Dimensions (WxDxH)
1369 x 154 x 875 mm
Product Weight
21.75 kg
Package Weight
27.25 kg
Vesa Mounting
400 x 400 mm
Bezel Width
B:14,2 | T:9,4 | L/R:9,4 mm
Environmental Conditions
Operating Temperature
0-40°C
Operating Humidity
10-90%
Power
Power Supply
110 VAC - 240 VAC - 50/60 Hz
Power Consumption
Typical
110 W
Maximum
180 W
Deep Standby
≤0.5 W
Features
Main Features
Open Content Management Support, Scheduler, USB-Autoplay, Auto-Launch, HDMI-CEC, HDMI-Wakeup, Auto-switch on Failover, Panel Lock, OSD Rotation, NoSignalPowerOff, Screen Saver, Pixel shift, Scheduler, Videowall support, remote control via LAN, Real Time Clock
Mechanical Features
Joystick, Cable Holder, OPS Compatible, SDM Support, Internal USB Cover, Detachable Power Plug
Speaker
2 x 10 W
Accessory
Standard
QSG, IB, Power Cord, Remote Control Unit, RC Battery, Mounting Kit, Extension Brackets
Certification
Safety
YES
EMC
YES
CE
YES
