PF Series

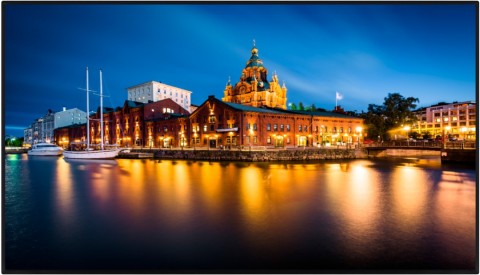

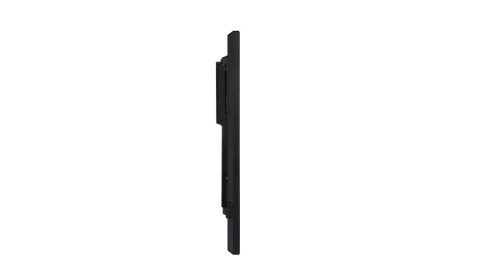

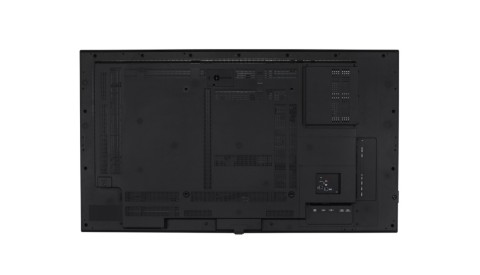

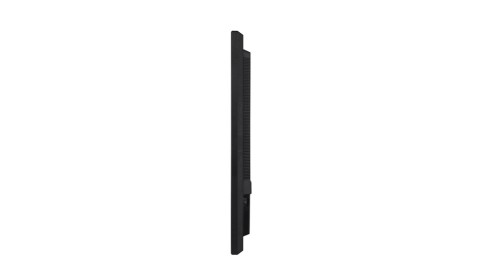

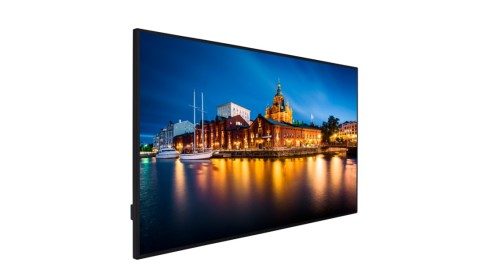

PF50B-IN

  • Resolution: 3840x2160 (UHD)
  • Brightness: 500 cd/m²
  • Operation: 16/7
  • OPS/SDM/NUC Module Support
  • Embedded IR/IR Extender Options
  • 30° Tilting Installation
  • Application Areas: Retail, QSR, Corporate, Control Rooms, Transportation
INQUIRY TO BUY
Features
Daisy Chain

The display can mirror the content (to another display) into its display port out coming from its display port in. This set up creates a daisy chain like structure allowing for monitors to be set up as Video Wall mode.

External Device Connections

You may want to connect your teleconference system, screen sharing system, set-top box or external PCs via HDMI port. For this purposes, our monitors help you to maximize user experience with HDMI CEC (Consumer Electronics Control) and HDMI Hotplug capabilities.

Open Platform Support

Our SoC supports API (Application Programming Interface) for solution providers/integrators to develop and integrate any HTML5-based to be installed and used on our displays.

Optional OPS Support

All our products in this series have an optional OPS (Open Pluggable Standard) slot. OPS will empower your screens with enhanced processing power and ability to choose Windows or Android as your operating system to fit your specific application.

Pixel Shifting

Pixel Shifting is designed to be activated inside the SoC in order to prevent for potential risk of image sticking, caused by constant content. With this feature turned on, pixels on the screen will move in an interval while causing no interference of visual experience.

Scheduler

Digital Signage Monitor Software allows many important features such as Scheduler. Scheduler sets your display turn on/off time easily and lets you not to worry about the status of your displays in any time.

Signal Failover

Our SoC Software has a protection for “No Signal” scenario. If the USB is unplugged after your content is set to be displayed with USB, the display will either show your customized banner or search for any other signal from other sources (HDMI, Display Port, etc.). This failover protection is constructed for higher user experience.

SoC Content Management

With quad core SoC (System on Chip), this Series displays are the digital signage monitors for both offline designed content and cloud-based managed content. This helps your digital content to be displayed in the displays by content management systems.

Subtle Design

This series’ displays exhibit ultra narrow bezel design eliminating the visual superfluities, directing audience focus on your advertised content. This series is found to be desirable for digital signage specific design: internal usb cover, detachable power plug, carrying handles and IR extender.

Usb Auto-Play

You will be able to show photo and video content automatically with USB Auto-play feature. SoC software gives you a choice to turn on USB auto-play function making it easy for end-users to show any media on the screen and not worry about anything else.

Usb Security

This series lets your USB and your content to be secured within the back cover of the display. The cover is protected with a screw not allowing any outside intervention.

Display Control

Digital Signage Display SoC enables the users to control our displays using RS232 commands in a Local Area Network. Together with the full RS232 command list you can change/set volume, turn on/off the monitor, set a schedule for content display, set a webpage link to be displayed and give a wide range of commands in real-time.

Specification Sheet Commercial Datasheet
Specifications
Panel
Screen Size 50''
Backlight Type Slim DLED
Brightness (typical) 500 cd/m²
Native Resolution 3840 x 2160 (16:9) - UHD
Contrast Ratio (typical) 5000:1(typ.)
Dynamic Contrast Ratio 50000:1
Panel Life Time ( Min. ) 50000 Hrs
Response Time (typical) 9.5 ms
Active Area (H x V) 1095.84 x 616.41
Viewing Angle 178° Vert., 178° Hor. (89U/89D/89L/89R) @ CR>10
Color Value 1.07B
Screen Treatment 3H
Haze Level 3%
Refresh Rate 60Hz
Orientation Landscape
Operation Hours 16 / 7
Area of Usage Indoor
Built-in System
Mainboard Model 17MB135VS
Monitor Connectivity
RGB Input VGA(DE-15F)
RGB Output N/A
Video Input 2xHDMI2.0, 2xUSB2.0, USB2.0(Internal)
Video Output N/A
Audio Input Line In L/R
Audio Output Headphone, Optic SPDIF
External Control RS232(DE-9F), Ethernet(RJ45), Service(RJ12)
External Sensor RJ12
Mechanical
Product Dimensions (WxDxH) 1121 x 83 x 646 mm with OPS/SDM 1121 x 63 x 646 mm without OPS/SDM
Package Dimensions (WxDxH) 1215 x 165 x 775
Product Weight 12.8 kg
Package Weight 16.8 kg
Vesa Mounting 200 mm(W) x 200 mm(H) M6
Bezel Width 9/9/9/13 mm
Environmental Conditions
Operating Temperature 0-40°C
Operating Humidity 10-90%
Power
Power Supply 110 VAC - 240 VAC - 50/60 Hz
Power Consumption
Typical 121 W
Maximum 160 W
Deep Standby ≤0.5 W
Features
Main Features Open Content Management Support, Scheduler, USB-Autoplay, Auto-Launch, HDMI-CEC, HDMI-Wakeup, Auto-switch on Failover, Panel Lock, OSD Rotation, NoSignalPowerOff, Screen Saver, Pixel shift, Scheduler, Videowall support, Remote control via LAN, Real Time Clock
Mechanical Features Joystick, Rocker Switch, Detachable Power Cable, Dettachable Logo, Internal Usb Cover, 30-degrees Tilting Installation
Optional Features SDM or OPS compatibility, Embedded IR, IR extender option
Speaker 2x10 W
Accessory
Standard QSG, IB, Power cord, Remote control unit, RC battery, Mounting kit, IR extender cable
Certification
Safety Yes
EMC Yes
CE Yes
* Specifications are subject to change without prior notice.
