Arddangos
Screen Size
65"
Panel Technology
Direct-Type LED
Backlight Type
350 cd/m²
Native Resolution
UHD: 3840 x 2160 - HDR10
Contrast Ratio (typical)
1200:1
Dynamic Contrast Ratio
35000:1
Panel Life Time ( Min. )
30.000 hrs
Life Time (typical)
8 ms
Active Area (H x V)
1428 x 804 mm
Pixel Pitch (H x V)
0.372 x 0.372 mm
PPI (pixel per inch)
68
Viewing Angle
178° Vert., 178° Hor. (89U/89D/89L/89R) @ CR>10
Color Value
1.07 B (10-bit)
Screen Treatment
2H
Haze Level
8%
Refresh Rate
60 Hz
Front Type
Touch Bezel
Orientation
Horizontal
Operation Hours
16/7 Panel
Area of Usage
Indoor
System Adeiledig
I/Os cefn
RGB Input
VGA(DE-15F)
RGB Output
N/A
Video Input
3xHDMI2.0, 2xUSB2.0, USB2.0(Internal), 1xMicroSD
Video Output
HDMI2.0
Audio Input
Line In L/R
Audio Output
Headphone, Optic SPDIF
External Control
RS232(DE-9F), 2*Ethernet(RJ45), Service(RJ12)
External Sensor
RJ12
Rhyngweithedd Cyffwrdd
Type of Touch Technology
Infrared (IR) Tech. - 10 Points
Sensitivity
Any touch with finger, gloved hand or pointer
Connectivity
HID, TUIO, Flash
Compatibility
Windows®7,Windows®8, Windows®10, Vista, XP, Mac® OS, Linux, Android
Orientation
Landscape support
Calibration
No need
Accuracy
90% <
Reporting Rate
up to 450 fps
Glass Type
Anti Glared (AG), Tempered
Frame Rate
up to 450 fps
Communication
USB 2.0
Power Supply Mode
USB
Supply Voltage
DC 5V +/- 5%
Average Current
< 400 mA
Response Time
< 10 ms
Touch Accuracy
+/- 2 mm (over 90% area)
Touch Durability
Unlimited
HID Compatibility
Yes USB
Object Sizes for Touch
5 mm

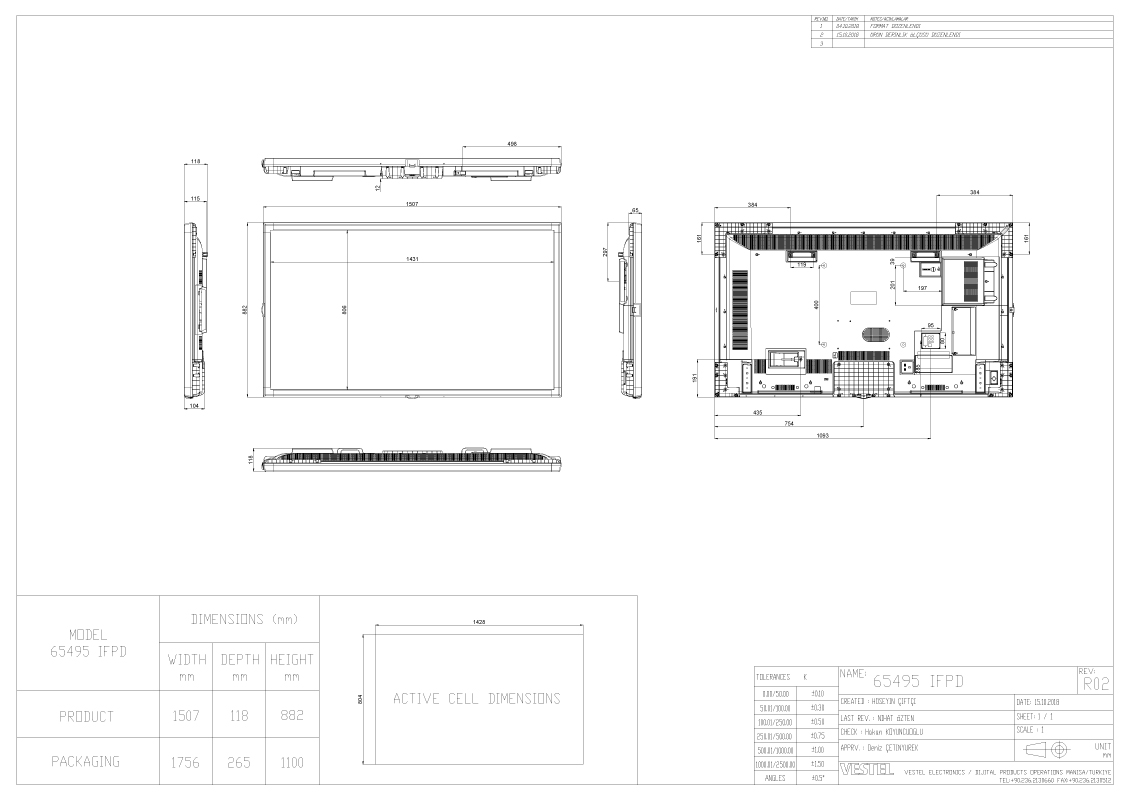

Mechanical
Product Dimensions (WxDxH)
1507 x 118 x 882 mm
Package Dimensions (WxDxH)
1756 x 265 x 1100 mm
Product Weight
38.6 kg
Package Weight
48 kg
Vesa Mounting
400 x 400 mm
Bezel Width
B:38| T:38 | L/R:38 mm
Amodau Amgylcheddol
Operating Temperature
+40°C / 0°C
Operating Humidity
90%
Grym
Power Supply
110 VAC - 240 VAC
Defnydd Pŵer
Typical
240 W
Maximum
200 W
Deep Standby
≤ 0.5W
Features
Main Features
USB-Autoplay, Auto-switch on Failover, Control Button Lock, HDMI Wake-Up
Mechanical Features
IR Touch, Joystick, IR Extender Support, Rocker Switch, Detachable power cable, Carrying handles, Detachable logo positioning, Cable Holders
Optional Features
OPS Compliance
Speaker
2 x 8 W
Affeithiwr
Standard
QSG, Instruction Book, Power Cord, Remote Control, RC Battery, Mounting Kit, Extension Brackets, IR Extender Cable
Ardystiad
Safety
YES
EMC
YES
CE
YES
Reability Approval
YES
