Sèrie IFD

IFD65TH752/3

Discontinued Products
  • Resolution : 3840x2160 (UHD)
  • Brightness : 350 cd/m²
  • Touch Points : 10 Points Multi Touch
  • Touch Techology : IR Touch
  • Interface : HDMI 2.0 / VGA / USB /RS232 / RJ45 / RJ12 for sensors / IR /HP / Audio / Speaker
  • Application Area: Education
CONSULTA PER COMPRAR
Característiques
Diferents mides per a diferents aules

Disponible en una varietat de mides de pantalles grans, la gamma IFD ofereix clients les opcions per triar exactament el que necessiten la mida de la seva habitació.

Presentació sense fil

Professors, estudiants o qualsevol usuari poden compartir la seva pantalla de manera eficient i còmodament a l'aula o a la sala de reunions mitjançant EShare aplicació. Aquesta aplicació pot connectar qualsevol sistema operatiu i mostrar fins a 4 pantalles diferents al mateix temps.

Facilitat d'ús amb Android

Android ofereix als professors accés amb un sol toc per a les lliçons i eines de col·laboració, com ara pissarra, navegador web, aplicacions biblioteca i compartició de pantalla sense fil nativa.

Esborrat de palma

La funció d'esborrat automàtic de la palma permet a professors i estudiants per simplificar l'experiència de la pissarra blanca amb una escriptura suau i esborrant.

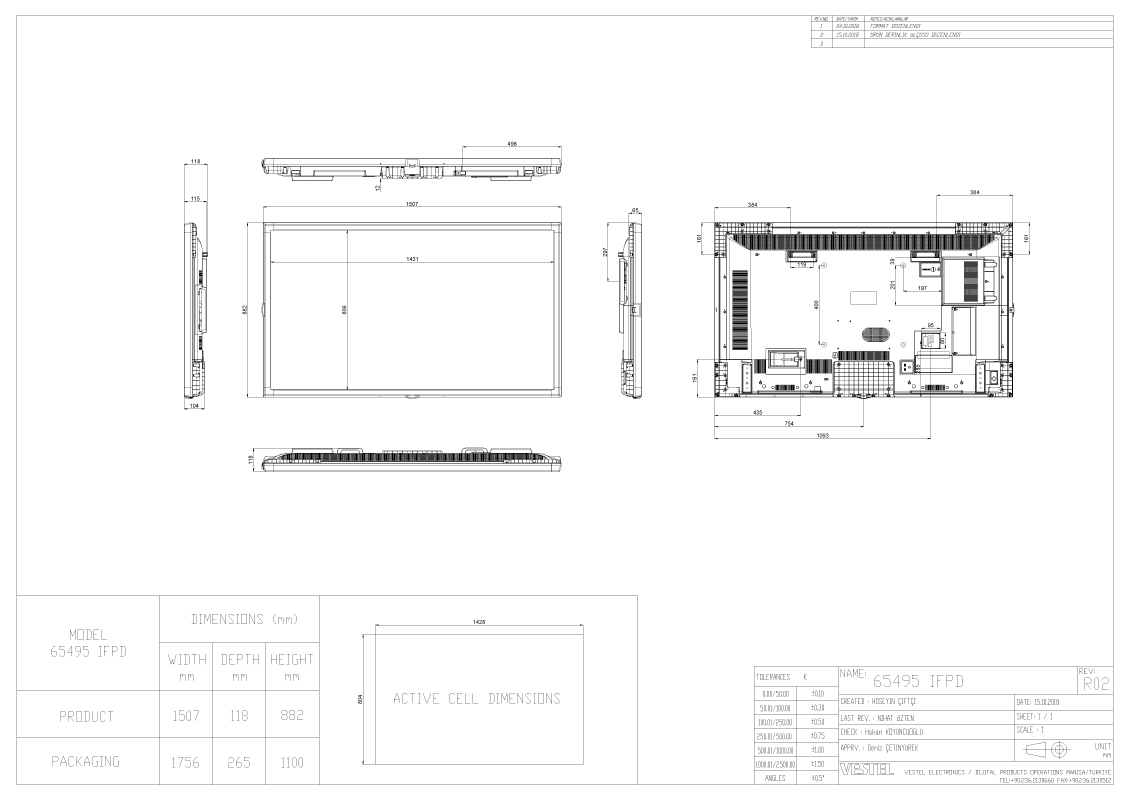

Specification Sheet Fitxa de dades comercials Dibuix mecànic detallat Dibuix mecànic detallat Document de control
Especificacions
Mostra
Screen Size 65"
Panel Technology Direct-Type LED
Backlight Type 350 cd/m²
Native Resolution UHD: 3840 x 2160 - HDR10
Contrast Ratio (typical) 1200:1
Dynamic Contrast Ratio 35000:1
Panel Life Time ( Min. ) 30.000 hrs
Life Time (typical) 8 ms
Active Area (H x V) 1428 x 804 mm
Pixel Pitch (H x V) 0.372 x 0.372 mm
PPI (pixel per inch) 68
Viewing Angle 178° Vert., 178° Hor. (89U/89D/89L/89R) @ CR>10
Color Value 1.07 B (10-bit)
Screen Treatment 2H
Haze Level 8%
Refresh Rate 60 Hz
Front Type Touch Bezel
Orientation Horizontal
Operation Hours 16/7 Panel
Area of Usage Indoor
Sistema incorporat
Mainboard Model MB135VS
E/S posteriors
RGB Input VGA(DE-15F)
RGB Output N/A
Video Input 3xHDMI2.0, 2xUSB2.0, USB2.0(Internal), 1xMicroSD
Video Output HDMI2.0
Audio Input Line In L/R
Audio Output Headphone, Optic SPDIF
External Control RS232(DE-9F), 2*Ethernet(RJ45), Service(RJ12)
External Sensor RJ12
Toqueu Interactivitat
Type of Touch Technology Infrared (IR) Tech. - 10 Points
Sensitivity Any touch with finger, gloved hand or pointer
Connectivity HID, TUIO, Flash
Compatibility Windows®7,Windows®8, Windows®10, Vista, XP, Mac® OS, Linux, Android
Orientation Landscape support
Calibration No need
Accuracy 90% <
Reporting Rate up to 450 fps
Glass Type Anti Glared (AG), Tempered
Frame Rate up to 450 fps
Communication USB 2.0
Power Supply Mode USB
Supply Voltage DC 5V +/- 5%
Average Current < 400 mA
Response Time < 10 ms
Touch Accuracy +/- 2 mm (over 90% area)
Touch Durability Unlimited
HID Compatibility Yes USB
Object Sizes for Touch 5 mm
Mechanical
Product Dimensions (WxDxH) 1507 x 118 x 882 mm
Package Dimensions (WxDxH) 1756 x 265 x 1100 mm
Product Weight 38.6 kg
Package Weight 48 kg
Vesa Mounting 400 x 400 mm
Bezel Width B:38| T:38 | L/R:38 mm
Condicions ambientals
Operating Temperature +40°C / 0°C
Operating Humidity 90%
Poder
Power Supply 110 VAC - 240 VAC
Consum energètic
Typical 240 W
Maximum 200 W
Deep Standby ≤ 0.5W
Features
Main Features USB-Autoplay, Auto-switch on Failover, Control Button Lock, HDMI Wake-Up
Mechanical Features IR Touch, Joystick, IR Extender Support, Rocker Switch, Detachable power cable, Carrying handles, Detachable logo positioning, Cable Holders
Optional Features OPS Compliance
Speaker 2 x 8 W
Accessoris
Standard QSG, Instruction Book, Power Cord, Remote Control, RC Battery, Mounting Kit, Extension Brackets, IR Extender Cable
Certificació
Safety YES
EMC YES
CE YES
Reability Approval YES
* Les especificacions estan subjectes a canvis sense avís previ.
