Panel
Screen Size
65"
Backlight Type
Direct-Type LED
Brightness (typical)
350 cd/m²
Native Resolution
UHD: 3840 x 2160
HDR10
Aspect Ratio
16:9
Contrast Ratio (typical)
1200:1
Dynamic Contrast Ratio
35000:1
Panel Life Time ( Min. )
30000 Hrs
Panel Life Time ( Average )
8 ms
Active Area (H x V)
1428 x 803 mm
Viewing Angle
178° Vert., 178° Hor.
(89U/89D/89L/89R) @ CR>10
Color Value
1.07 B (10-bit)
Haze Level
8%
Refresh Rate
60 Hz
Glass Type
4 mm Tempered
Anti-Glare
Glass Hardness
8 Mohs
Built-in System
Mainboard Model
MB170VS
Operating System
Customized Android Pie 9.0
Memory
1.5GB DDR3 / 2GB Upgrade
Storage
8GB EMMC
CPU
CA55 Quad core
GPU
Mali470 MP3
Wired
10/100 Mbps Ethernet
WiFi
WiFi 5 (802.11 a/b/g/n/ac)
Bluetooth
BT 4.2

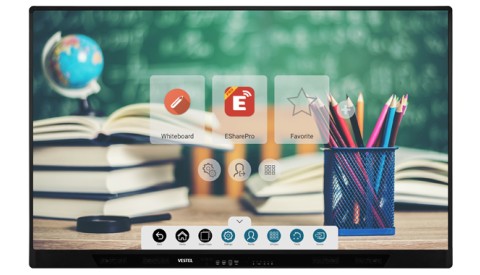

User Experience
Home Page
Personalized Background,
Home buttons,
Navigation bar,
Quick Palette
Launcher
All Apps,
Profile Login/Logout,
Quick Settings,
Tools,
Source Change
Applications
Whiteboard,
ScreenShare,
Web browser,
File Manager,
Media Player
Board Management System
Connected System for User Profile Management
USB Type-C
Data transfer: USB2.0,
Charging capability: 7.5W,
DP alternate mode: 4K video stream
Others
Over-the-Air SW Update,
Screen Freeze,
Screen Lock,
Dual Pen Recognition,
Palm Erase,
Annotate over Any Source
Monitor Connectivity
RGB Input
VGA
Video Input
4 x HDMI2.0,
2 x USB2.0 type-A,
1 x USB2.0 type-C,
1 x MicroSD (up to 1TB),
1 x Secure Slot (USB2.0),
1 x OPS Slot(15W)
Video Output
1 x HDMI2.0
Audio Output
Headphone(Line-out),
Optic SPDIF
External Control
RS232(3.5mm jack),
Ethernet(RJ45),
Service(RJ12)
External Sensor
RJ12
Front Accessibility
Front I/Os
2 x USB2.0 Type-A,
1 x USB2.0 Type-B for touch,
1 x HDMI2.0 Input
Console Buttons
Standby on/off
Volume up
Volume down
Touch enable/disable
Source Change,
Settings
IR Receiver
Fixed on bezel
Audio
2x20 W - Front Facing Speakers
Pen Holder
Integrated Magnetic Tray
Touch Interactivity
Type of Touch Technology
Infrared (IR) Technology
Continuous Touch Points
Max. 20 touch points*
*Bounded by application's limits
Touch Resolution
32768 x 32768 px
Sensitivity
Any touch with finger, gloved hand or pointer
Compatibility
Windows®7,Windows®8, Windows®10, Vista, XP, Mac® OS, Linux, Android
Response Time
< 5 ms
Touch Accuracy
+/- 1 mm (over 90% area)
Pen Type
Battery-less Pen
Pen Identities
2
Object Sizes for Touch
2.8 & 10 mm
Mechanical
Product Dimensions (WxDxH)
1497 x 930 x 113 mm
Package Dimensions (WxDxH)
1756 x 1100 x 265 mm
Product Weight
43.6 kg
Package Weight
51.8 kg

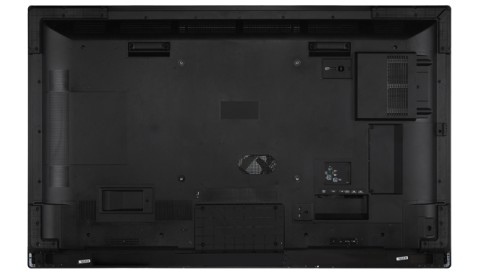

Vesa Mounting
400 x 400 mm - M6

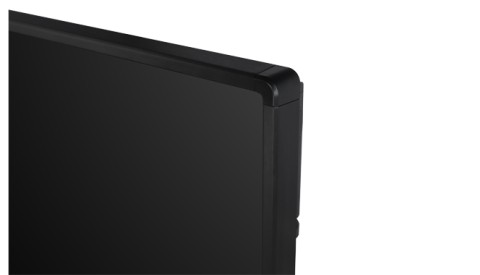

Bezel Width
B:66 | T:15 | L/R:15 mm
Environmental Conditions
Operating Temperature
+40°C / 0°C
Operating Humidity
90%
Power
Power Supply
110 VAC - 240 VAC
Power Consumption
Typical
240 W
Maximum
320 W
Deep Standby
<
Features
Mechanical Features
Slim Bezel, User-Friendly Front Ports and Buttons, Detachable power cable, Carrying handles
Certification
Safety
YES
EMC
YES
CE
YES
