Bistaratzea
Screen Size
75"
Panel Technology
IPS
Backlight Type
Direct-Type LED
Brightness (typical)
400 cd/m²
Native Resolution
UHD: 3840 x 2160 - HDR10
Contrast Ratio (typical)
1200:1
Dynamic Contrast Ratio
40000:1
Panel Life Time ( Min. )
30000 Hrs
Panel Life Time ( Average )
8 ms
Active Area (H x V)
1650 x 928 mm
Pixel Pitch (H x V)
0.429 x 0.429 mm
PPI (pixel per inch)
59
Viewing Angle
178° Vert., 178° Hor. (89U/89D/89L/89R) @ CR>10
Color Value
1.07 B (10-bit)
Screen Treatment
2H
Haze Level
8%
Refresh Rate
60 Hz
Front Type
Touch Bezel Type
Orientation
Horizontal
Operation Hours
16/7 Panel
Area of Usage
Indoor
Sistema integratua
Mainboard Model
17MB135VS
Atzeko I/Oak
RGB Input
VGA(DE-15F)
RGB Output
N/A
Video Input
4xHDMI2.0, 2xUSB2.0, USB2.0(Internal)
Video Output
HDMI2.0
Audio Input
Line In L/R
Audio Output
Headphone, Optic SPDIF
External Control
RS232(DE-9F), Ethernet(RJ45), Service(RJ12)
External Sensor
RJ12
Ukitu Interaktibitatea
Type of Touch Technology
Infrared (IR) Technology
Continuous Touch Points
10 Points
Sensitivity
Any touch with finger, gloved hand or pointer
Connectivity
HID, TUIO, Flash
Compatibility
Windows®7,Windows®8, Windows®10, Vista, XP, Mac® OS, Linux, Android
Orientation
Landscape support
Calibration
No need
Accuracy
%90 <
Reporting Rate
Up to 450 fps
Glass Type
Anti Glared (AG), 4mm Tempered
Frame Rate
up to 450 fps
Communication
USB 2.0
Power Supply Mode
USB
Supply Voltage
DC 5V +/- 5%
Average Current
<400mA
Response Time
<10ms
Touch Accuracy
+/-2mm (over 90% area)
Touch Durability
Unlimited
HID Compatibility
Yes USB
Object Sizes for Touch
5mm

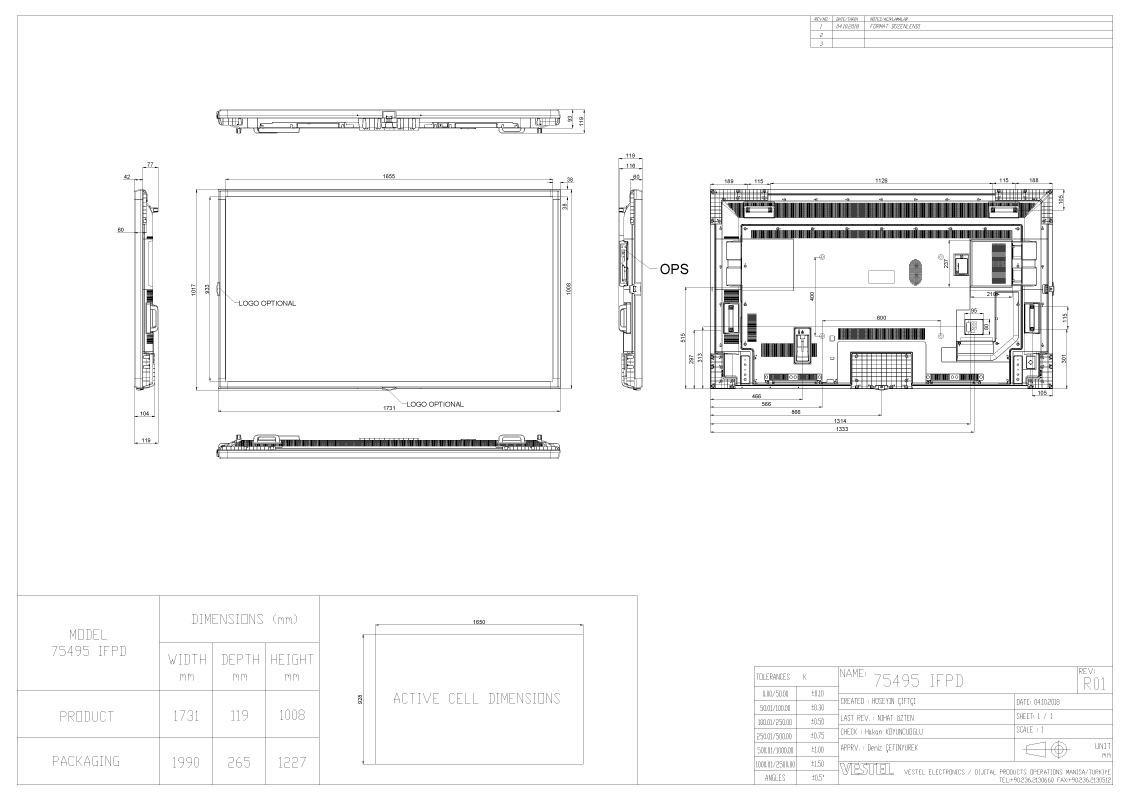

Mechanical
Product Dimensions (WxDxH)
1731 x 119 x 1008 mm
Package Dimensions (WxDxH)
1990 x 265 x 1227 mm
Product Weight
58.3 kg
Package Weight
72.3 kg
Vesa Mounting
600 x 400 mm
Bezel Width
B:38| T:38 | L/R:38 mm
Ingurumen Baldintzak
Operating Temperature
+40°C / 0°C
Operating Humidity
90%
Boterea
Power Supply
110 VAC - 240 VAC
Energia-kontsumoa
Typical
240 W
Maximum
320 W
Deep Standby
≤0.5W
Features
Main Features
USB-Autoplay, Auto-switch on Failover, Control Button Lock, HDMI Wake-Up
Mechanical Features
IR Touch, Joystick, IR Extender Support, Rocker Switch, Detachable power cable, Carrying handles, Detachable logo positioning, Cable Holders
Optional Features
OPS Compliance
Speaker
2 x 12 W
Osagarria
Standard
QSG, IB, Power Cord, Remote Control Unit, RC Battery, Mounting Kit, Extension Brackets, IR Extender Cable
Ziurtapena
Safety
YES
EMC
YES
CE
YES
Reability Approval
YES
