Bistaratzea
Screen Size
75"
Panel Technology
IPS
Backlight Type
Direct-Type LED
Brightness (typical)
400 cd/m²
Native Resolution
UHD: 3840 x 2160 - HDR10
Contrast Ratio (typical)
1200:1
Dynamic Contrast Ratio
40000:1
Panel Life Time ( Min. )
30.000 Hrs
Response Time (typical)
8 ms
Active Area (H x V)
1650 x 928 mm
Pixel Pitch (H x V)
0.429 x 0.429 mm
PPI (pixel per inch)
59
Viewing Angle
178° Vert., 178° Hor. (89U/89D/89L/89R) @ CR>10
Color Value
1.07 B (10-bit)
Screen Treatment
2H
Haze Level
8%
Refresh Rate
60 Hz
Front Type
Touch Bezel
Orientation
Horizontal
Operation Hours
16/7
Area of Usage
Indoor
Sistema integratua
Mainboard Model
17MB135VS
Atzeko I/Oak
RGB Input
VGA(DE-15F)
RGB Output
N/A
Video Input
3xHDMI2.0 (HDCP2.2), 2xUSB2.0, USB2.0(Internal), 1xMicroSD
Video Output
HDMI2.0
Audio Input
Line In L/R
Audio Output
Headphone, Optic SPDIF
External Control
RS232(DE-9F), 2*Ethernet(RJ45), Service(RJ12)
External Sensor
RJ12
Ukitu Interaktibitatea
Type of Touch Technology
Infrared (IR) Technology
Continuous Touch Points
10 Points
Sensitivity
Any touch with finger, gloved hand or pointer
Connectivity
HID, TUIO, Flash
Compatibility
HID, TUIO, Flash Windows®7,Windows®8, Windows®10, Vista, XP, Mac® OS, Linux, Android
Orientation
Landscape support
Calibration
No need
Accuracy
90% <
Reporting Rate
up to 450 fps
Glass Type
Anti Glared (AG), Tempered 4mm
Frame Rate
up to 450 fps
Communication
USB2.0
Power Supply Mode
USB
Supply Voltage
DC 5V +/- 5%
Average Current
< 400 mA
Response Time
< 10 ms
Touch Accuracy
+/-2mm (over 90% area)
Touch Durability
Unlimited
HID Compatibility
YES USB
Object Sizes for Touch
5 mm

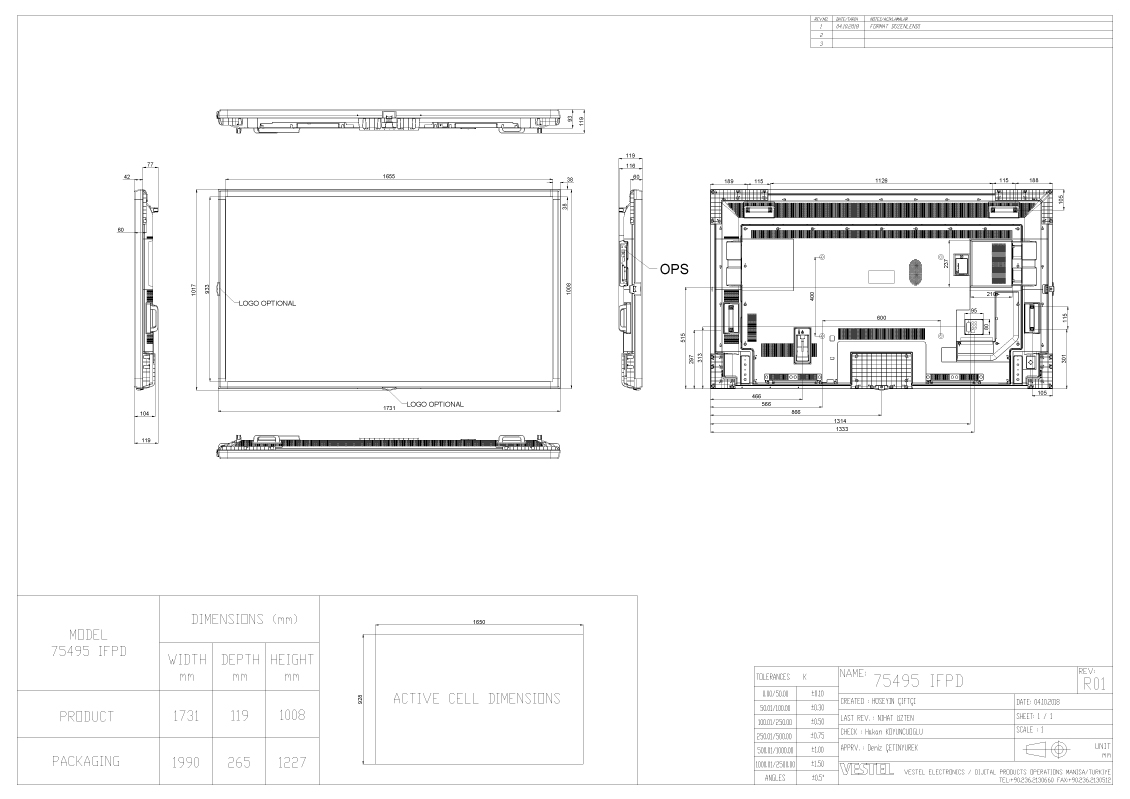

Mechanical
Product Dimensions (WxDxH)
1731 x 119 x 1008 mm
Package Dimensions (WxDxH)
1948 x 310 x 1248 mm
Product Weight
58.3 kg
Package Weight
72.4 kg
Vesa Mounting
600 x 400 mm - M6
Bezel Width
B:38 | T:38 | L/R:38 mm
Ingurumen Baldintzak
Operating Temperature
0-40°C
Operating Humidity
10-90%
Boterea
Power Supply
110 VAC - 240 VAC - 50/60 Hz
Energia-kontsumoa
Typical
240 W
Maximum
320 W
Deep Standby
≤ 0.5W
Features
Main Features
USB-Autoplay, Auto-switch on Failover, Control Button Lock, HDMI Wake-Up
Mechanical Features
IR Touch, Joystick, IR Extender Support, Rocker Switch, Detachable power cable, Carrying handles, Detachable logo positioning, Cable Holders
Optional Features
OPS Compliance
Speaker
2 x 12 W
Osagarria
Standard
QSG, IB, Power Cord, Remote Control Unit, RC Battery, Mounting Kit, Extension Brackets, IR Extender Cable
Ziurtapena
Safety
YES
EMC
YES
CE
YES
